Place of Origin:
China
Brand Name:
BVEM
Certification:
ISO 9001:2015
Model Number:
BJV260E-450
Contact Us
Vibroflot Equipment Pile Driver Vibroflotation Strengthen Foundation of Shear Capacity 260kW
| The Top Feed Electric Vibroflot Spec. | ||||||||
| Type | Power (kW) |
Rated current(A) | Max rotation speed(rpm) | Max amplitude (mm) |
Vibration power(kN) | Weight (kg) | Outer diameter(mm) | Length(mm) |
| BJV260E-450 | 260 | 500 | 1450 | 25 | 520 | 3280 | 450 | 3400 |

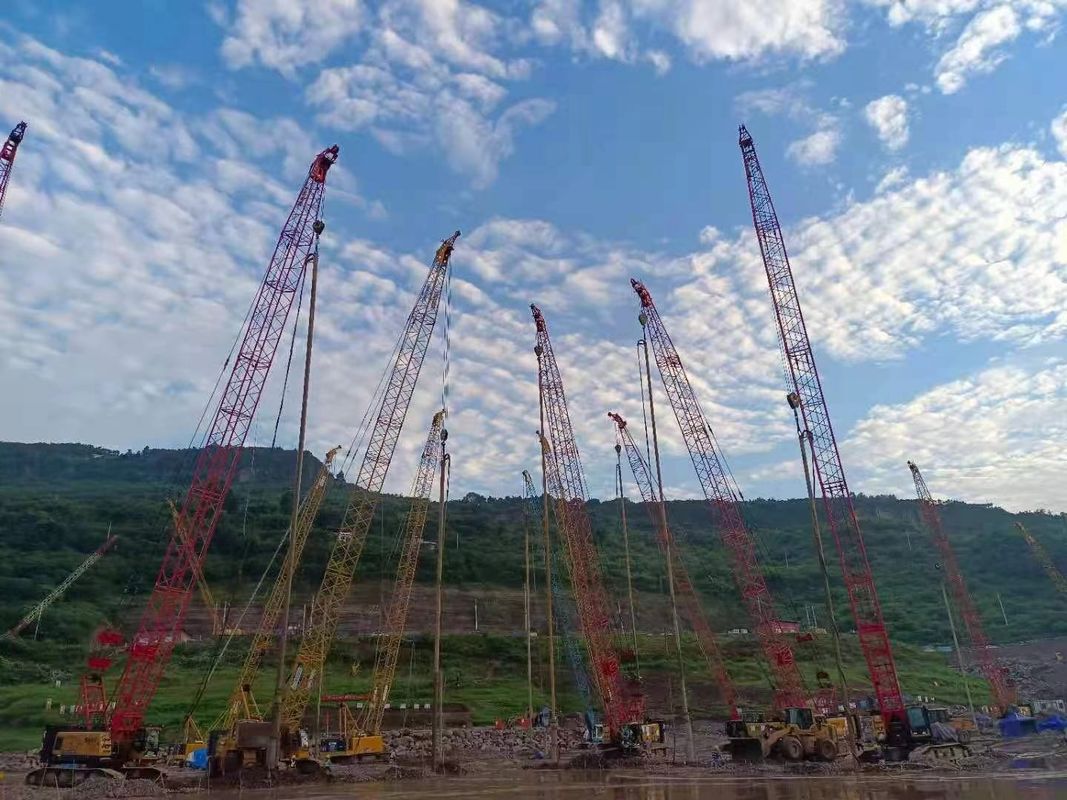

Application of high power 260kw vibro impact equipment in The Island Jumeirah Dubai project
The project adopts 150 ton crawler crane to carry out the compaction construction with two 260kw vibroflots double hanged. The pile spacing is designed to be 5m, and 70% compactness can be achieved after construction.
Installing compaction piles is a very effective way of improving soil. Compaction piles are usually made of prestressed concrete or timber. Installation of compaction piles both densifies and reinforces the soil. The piles are generally installed in a grid pattern and are generally driven to depth of up to 60 ft.
BVEM | vibroflot equipment manufacturer in China
BVEM focus on vibroflotation market and formed a business platform with vibroflotation technique as core, on which there are three main business including the manufacturing and integration of vibroflotation equipment, sales and service for vibroflotation equipment and foundation improvement construction undertaking. BVEM is the largest manufacturer of electrical vibroflot in Asia and one of the authors of Chinese vibroflot manufacturing code.
BVEM has a total 23000 square meters of coverage area, including NC machining workshop, electrical assembly workshop, storage warehouse, testing site, and full functional departments is composed of production, R&D, marketing , after-sales service and construction
