Place of Origin:
China
Brand Name:
BVEM
Certification:
ISO 9001:2015
Model Number:
BJZC-BFS-400-180
Contact Us
China Bottom Feed Vibroflot System Professional Manufacturer Successful applied in Reclamation Island Dry Method
| Model | BJZC-BFS-400-180 |
| Power(kW) | 180 |
| Voltage(V) | 380 |
| Frequency(Hz) | 50 |
| Rotation speed(rpm) | 1200-1800 |
| Working pile diameter (mm) | 900-1200 |
| System pressure(bar) | 6 |
| Vibration force(kN) | 200-300 |
| Hopper volume(m³) | 1.2 |
| Pipe diameter(mm) | DN340 |
| Control type | Inverter Control |
| Cooling-down method | Circulating water cooling |
| Air flow rate(m³/min) | 10 |
| Vibrator size L/W/H(mm) | 2600×600×700 |
| The bin size L/W/H(mm) | 4800×1300×(1300-1500) |
| Extension tube size L/W/H(mm) | 12000×300×600 |
BVEM company profile (Beijing vibroflotation engineer machinery co.,ltd)
BVEM focus on the vobroflotation market, and form a clear business model that takes vibroflotation as the core, R&D, production and integration of complete vibroflot equipment, vibroflotation technical consultation and sales & service of vibroflot, and foundation treatment engineering construction as the business platform.
Adhering to the customer-oriented business philosophy of “Outperform to Serve Vibroflotation”, BVEM stands the forefront of the industry, constantly improving product quality, leading the development of the industry with innovation, and bring the most excellent products to the users.

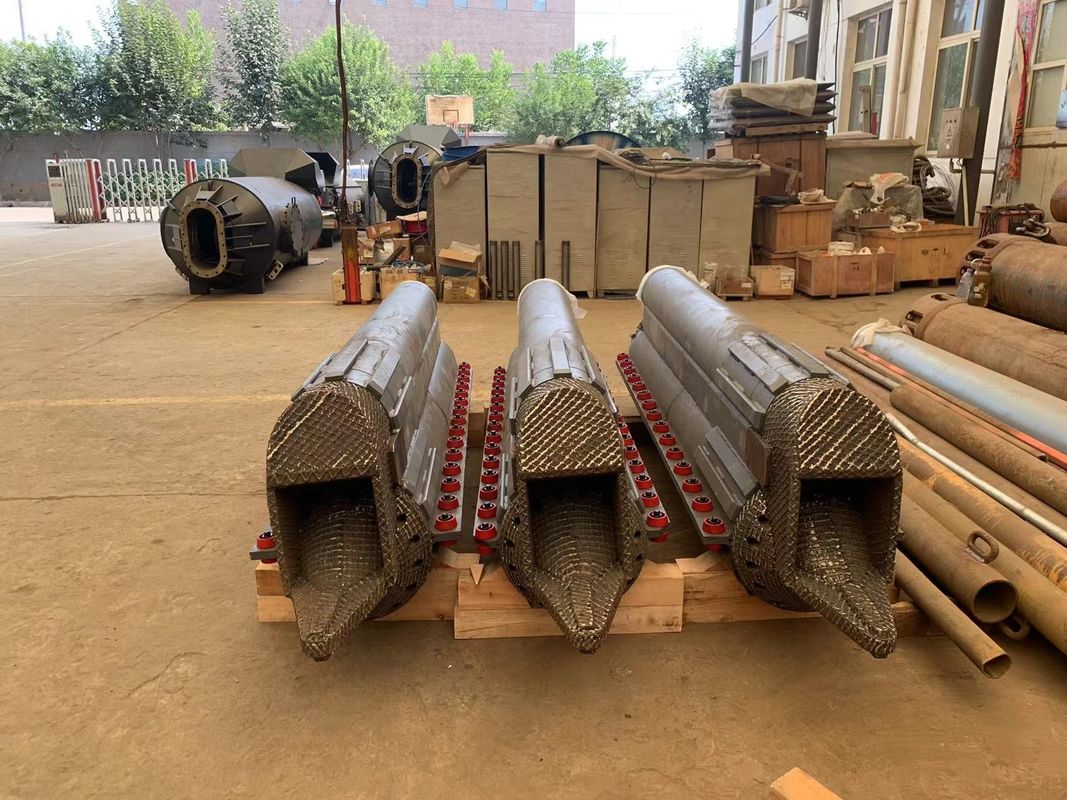

Customization of Production for Bottom Feed Vibroflot
1. Equipped with a high-power 180KW vibrator. It has superior dynamic performance in the process of drilling and compaction
2. The unique design of bypass pipeline can realize multiple construction methods including: dry method, water method and water-air linkage method.
3. The special circulating water cooling system can protect the motor to run normally for a longer time during dry method construction
4. The optimal parameters design of feeding tube makes the stone applicable to a larger range of particle size with ensuring of smooth discharge
5. Unique type of bin valve ensures smooth blanking and reduces equipment failure
6. Build-in self-lock designed bolt facilitates the dis-assembly of equipment and ensures reliable connection.
7. By the open-type external interface, multiple type of lifting machine including crane,rotary drilling rig,pile frame and excavator can be applicable.
Bottom Feed Vibroflot equipment system applied in reclamation island area
in order to meet the requirements of the owner, our company has also completed the first test of bottom feed vibroflotation sand pile and bottom feed vibroflotation cement powder sand pile t in China.
This test further confirms the high performance and application diversity of our bottom feed vibroflotation device in soft foundation treatment such as large water content. We look forward to making greater contributions to the foundation treatment industry in the future.
One of the characteristics of BVEM bottom feed vibroflotation device: Equipped double lock pressure cavities
In the construction of vibroflotation stone column piles, in order to ensure accurate filling, the bottom feed vibroflotation device was born. The bottom feed vibroflotation device consists of two major systems: the vibroflotation system and the materials feeding system
The feeding system can be divided into non cavity, single cavity, and double cavities forms according to the quantities of cavities.
As shown in the following figure: The double lock pressure containers is equipped with upper and lower two cavities, to ensure that the air pressure is always maintained in the silo and even in the material pipeline;
Equipped with a proprietary silo control system, it can achieve one-button feeding, pressure charging, and overall action of feeding.
