BVEM 2600 r/min rotation speed hydraulic vibroflot pile driver

Product Description:

The Hydraulic Vibroflot is a cutting-edge product designed to revolutionize the pile driving process in dry method construction projects. With dimensions of 1.5m x 1.5m x 2m, this hydraulic vibroflot is compact yet powerful, making it an ideal choice for a wide range of construction applications.

Equipped with CE and ISO 9001 certifications, the Hydraulic Vibroflot guarantees high-quality performance and adherence to international standards. This ensures reliability and safety on the job site, giving users peace of mind during operation.

• 600-3000rpm stepless speed regulation, which can flexibly match different construction rhythms and stratum requirements, and accurately control the operation intensity.
• It has a wide range of applicable strata. With strong excitation force and optimized structural design, it has stronger penetration. It can work efficiently in both soft soil foundations and gravel-containing strata.
• It can continuously output large excitation force and high power, ensuring stable and continuous construction process, and effectively improving pile forming efficiency and project quality.
• It does not require a water-cooled motor, breaking through the dependence of traditional construction on water sources, realizing vibroflotation dry method environmental protection construction, and conforming to the concept of green engineering.

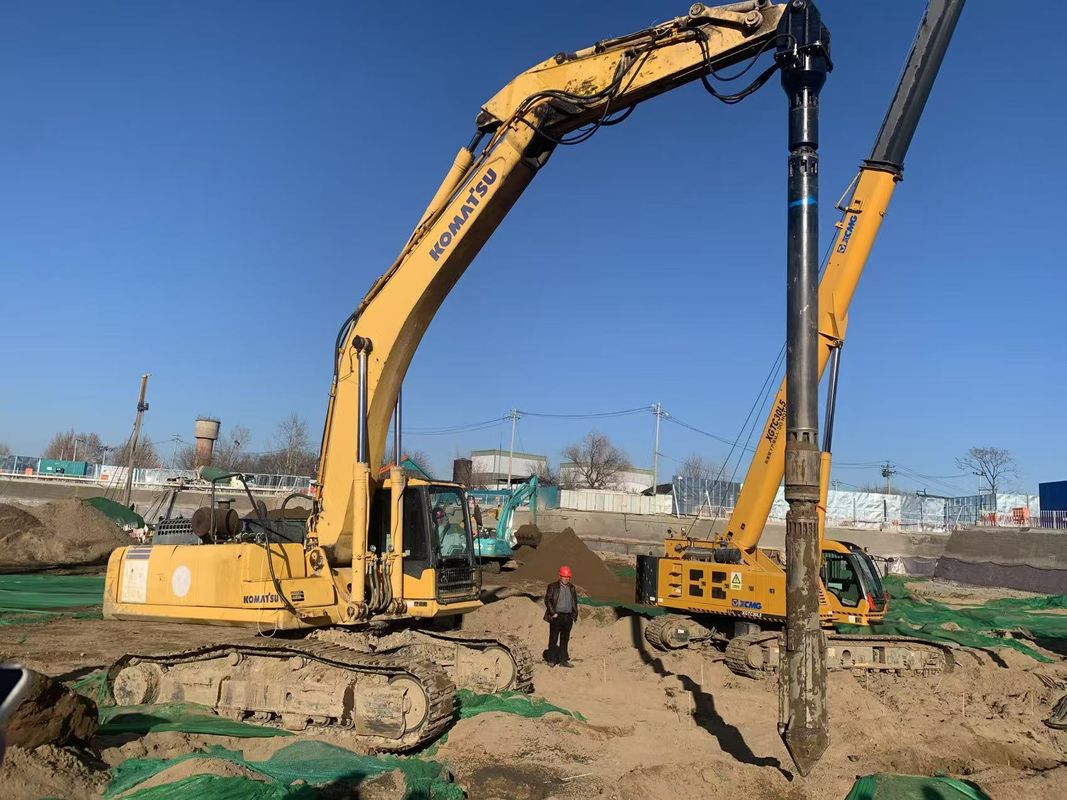

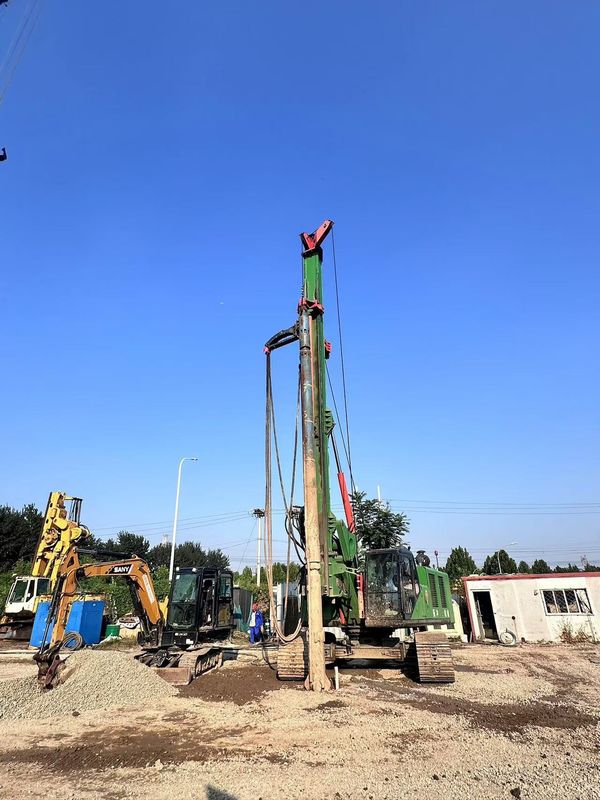

• It has outstanding high adaptability and can be flexibly mounted on various construction site equipment such as special pump stations, rotary drilling rigs, excavators, and pile frames, adapting to the equipment configuration needs of different construction scenarios and reducing equipment investment costs.

Features:

• Product Name: Hydraulic Vibroflot
• Flow Rate: 100 L/min
• Max. Diameter: 1.5 M
• Dimensions: 1.5m X 1.5m X 2m
• Remote Control: Yes
• Vibroflot Diameter: 500-800 Mm

Technical Parameters:

• Eccentric moment of vibroflot: 29 Nm
• Rated speed of vibroflot: 600-2600 r/min
• Rated power of vibroflot: 105 kW
• Amplitude of vibroflot: ±4.6 mm
• Hydraulic flow rate: 208 lpm
• Maximum working pressure: 350bar
• Maximum excitation force: 214kN
• Weight of vibroflot: 935kg (below the shock absorber)
• Outer diameter of vibroflot: 350 mm
• Outer diameter with water channel: 568 mm
• Pile forming diameter: 500-800 mm

Applications:

BVEM has always been oriented to the diversified needs of customers, and is deeply engaged in the diversified R&D and innovation of vibroflot equipment: from electric vibroflots to hydraulic vibroflots, it has realized the iterative upgrading of driving methods; from orifice filling vibroflots to bottom discharge vibroflots, it has accurately adapted to the core needs of different construction technologies; it has also broken through the limitations of equipment mounting scenarios, covering all kinds of construction scenarios.

The BVEM BJVH-350-105 hydraulic vibroflot is a vivid practice of this concept. It provides more targeted professional solutions for customers' vibroflotation projects of different scales and working conditions, truly realizing all-round empowerment from equipment performance to construction efficiency.
