China BVEM Brand Vibroflot Equipment Diameter 500-800 Mm with 176 KW Engine Power

Product Description:

With over 50 years of dedication to the vibroflotation industry, BVEM has focused on the R&D and investment in vibroflotation products. It takes creating high-efficiency, stable and high-quality equipment as its core goal, providing solid and reliable guarantees for customers' vibroflotation projects. The BJVH-350-105 hydraulic vibroflot under its brand is a concentrated embodiment of its technical accumulation and innovative strength.

I. Working Principle of Hydraulic Vibroflot
This hydraulic vibroflot efficiently converts hydraulic energy into mechanical energy (rotational motion) through a hydraulic motor, driving the eccentric block to generate a strong horizontal excitation force. It has significant core advantages: large output torque, wide speed regulation range, and the ability to achieve stepless speed regulation. It can easily cope with large impact loads, providing both work efficiency and stable power support for vibroflotation construction.

Features:

Features of BVEM BJVH-350-105 Hydraulic Vibroflot

-- 600-3000rpm stepless speed regulation, which can flexibly match different construction rhythms and stratum requirements, and accurately control the operation intensity.

-- It has a wide range of applicable strata. With strong excitation force and optimized structural design, it has stronger penetration. It can work efficiently in both soft soil foundations and gravel-containing strata.

-- It can continuously output large excitation force and high power, ensuring stable and continuous construction process, and effectively improving pile forming efficiency and project quality.

-- It does not require a water-cooled motor, breaking through the dependence of traditional construction on water sources, realizing vibroflotation dry method environmental protection construction, and conforming to the concept of green engineering.

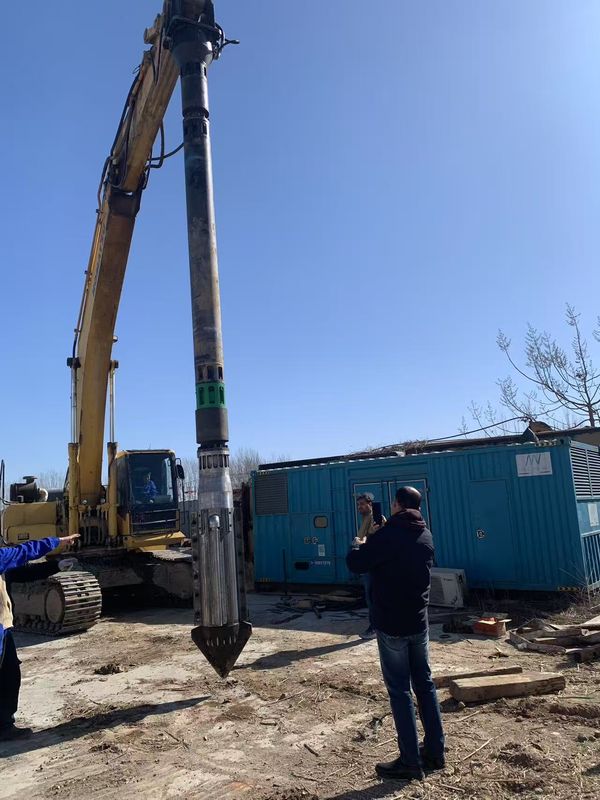

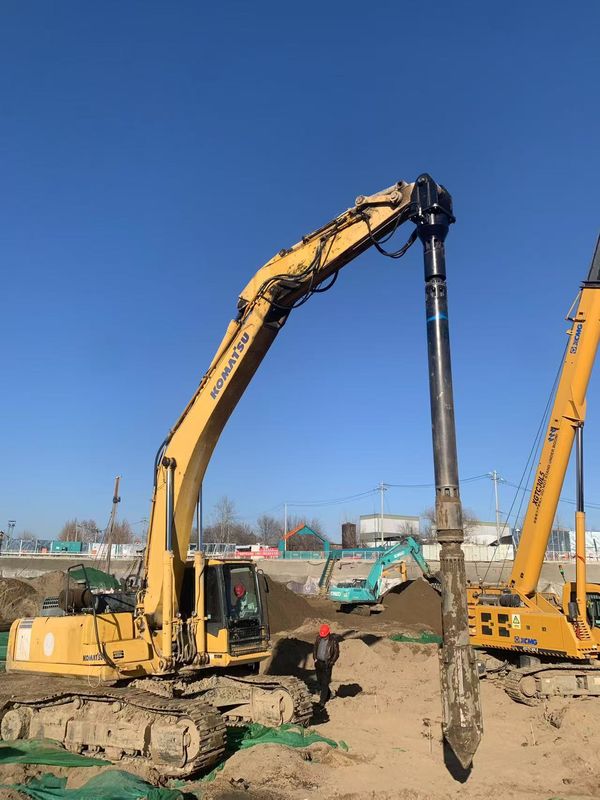

-- It has outstanding high adaptability and can be flexibly mounted on various construction site equipment such as special pump stations, rotary drilling rigs, excavators, and pile frames, adapting to the equipment configuration needs of different construction scenarios and reducing equipment investment costs.

Technical Parameters:

Performance Parameters of BVEM BJVH-350-105 Hydraulic Vibroflot
This 105kW power-class vibroflot has performance parameters that accurately meet diverse construction needs:

Eccentric moment of vibroflot:  29 Nm

Rated speed of vibroflot:  600-2600 r/min

Rated power of vibroflot:  105 kW

Amplitude of vibroflot:  ±4.6 mm

Hydraulic flow rate:  208 lpm

Maximum working pressure:  350bar

Maximum excitation force:  214kN

Weight of vibroflot:  935kg

Outer diameter of vibroflot:  350 mm

Outer diameter with water channel:  568 mm

Pile forming diameter:  500-800 mm

Applications:

The BVEM Hydraulic Vibroflot (Model: BJVH-350-105) is a powerful soil improvement tool designed to enhance soil relative density in various construction scenarios. Manufactured in CHINA , this product boasts CE and ISO 9001 certifications, ensuring top-notch quality and performance.

BVEM has always been oriented to the diversified needs of customers, and is deeply engaged in the diversified R&D and innovation of vibroflot equipment: from electric vibroflots to hydraulic vibroflots, it has realized the iterative upgrading of driving methods; from orifice filling vibroflots to bottom discharge vibroflots, it has accurately adapted to the core needs of different construction technologies; it has also broken through the limitations of equipment mounting scenarios, covering all kinds of construction scenarios.

• Foundation Construction: The BVEM Hydraulic Vibroflot is ideal for compacting soil and improving its relative density, ensuring stable foundations for buildings and infrastructure.
• Road and Highway Projects: Use this vibroflotation machine to enhance soil strength and reduce settling, increasing the lifespan and durability of roads and highways.
• Retaining Wall Installation: Improve soil stability and prevent erosion by utilizing the BVEM Hydraulic Vibroflot in retaining wall construction.

Whether you are a contractor, engineer, or construction professional, the BVEM Hydraulic Vibroflot offers a reliable solution for soil improvement tasks. Trust in its quality, performance, and remote control functionality to streamline your projects and achieve excellent results.
